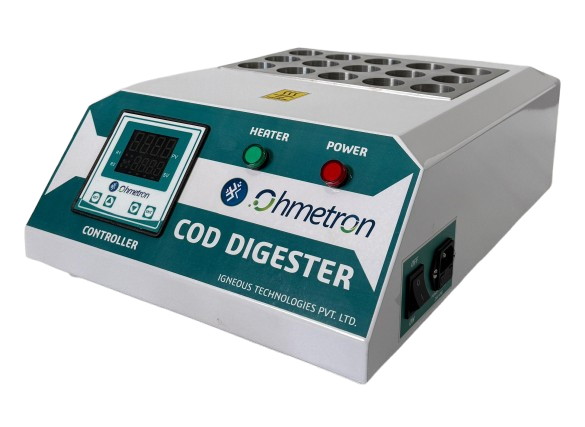

Cod Digester

Product Features

  • The insulated heater block of the COD reactor series ensures no skin contact with the heater block.
  • No process monitoring as end of cycleaudible buzzer alerts the user after completion of the process.
  • Continuous graphical monitoring of time & temperature along with display of set and actual values.
  • Comfortable to use as requires no process monitoring.
  • Auto process off after achieving set time.
Download Brochure

Technical Specification

Model  COD06 COD09  COD12 VAC180GMP
Controller PID Digital Controller With Timer And Temperature Adjustable By User
Position  06 position 09 position 12 position 15 position
Hole Dimension Ø 40 x 80 mm depth
Capacity 250 ml x 06 tube 250 ml x 09 tube 250 ml x 12 tube  250 ml x 15 tube
 Heating Block Aluminium
Temperature Accuracy ± 1 °C
Temperature Range Ambient +10 °C to 180 °C
Display Resolution  0.1 °C
 Timer Range 0-999 min.
 Power Consumption 500 watt 500 watt 800 watt  1200 watt  1500 watt
Power Requirement 230-240V, AC, 50Hz,Single Phase
