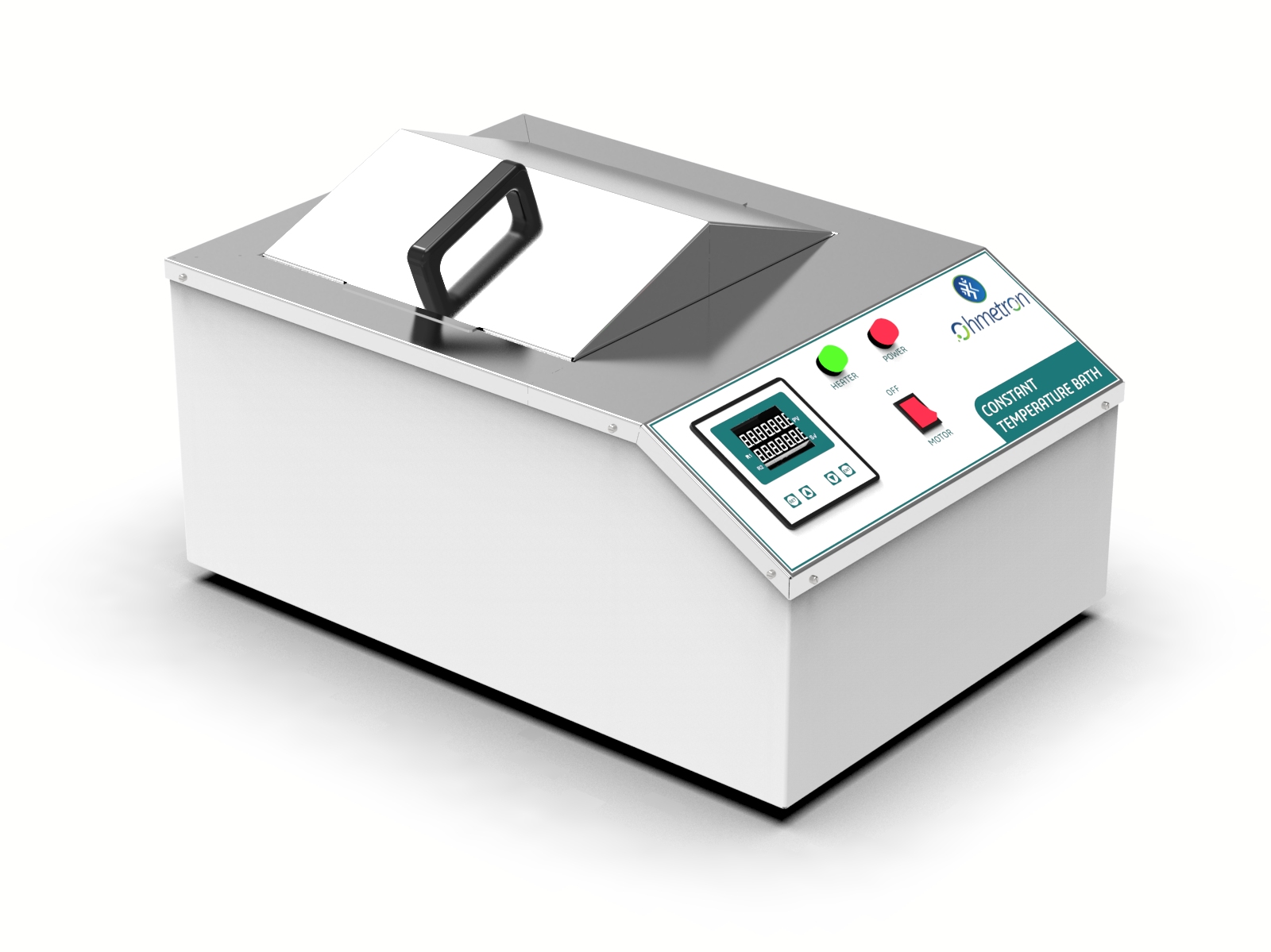

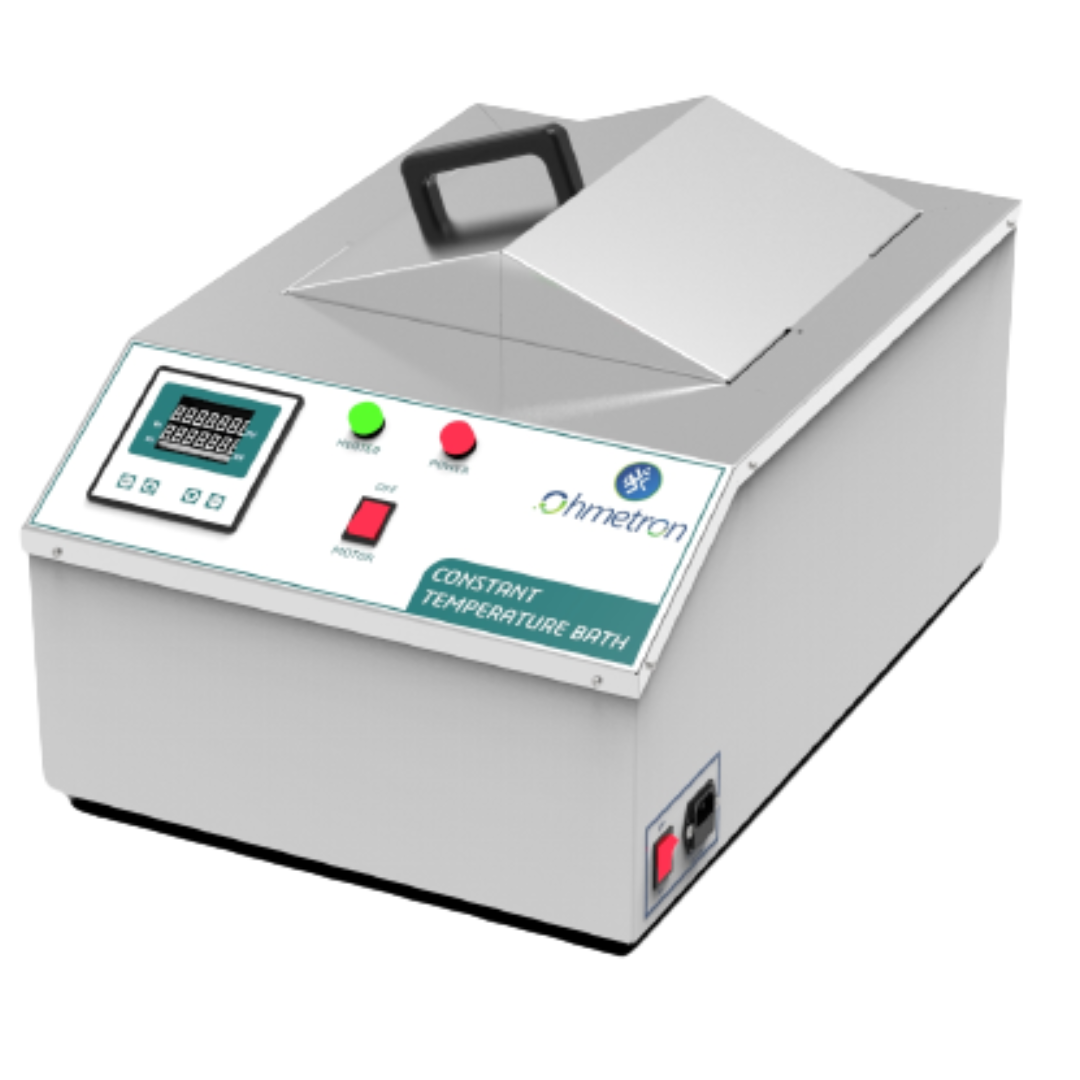

Constant Temperature Bath
Product Features
- User settable Digital Temperature Controller with timer.
- Temperature range: Ambient +5°C to 99°C.
- The water circulation pump is provided for better uniformity of temperature with capacity of 15Lit/min.
- SS tubular heaters water immersion type.
- Gap between two walls filled with glass wool insulation.
- GMP model available on request.
- Outer body M.s Powder Coated
- Inner Chamber SS304 Mirror Finish
Safety
- Safety standby thermostat mount on front panel to cut off heater supply in case of
overshoot of temperature
This laboratory equipment provides uniform temperature throughout the chamber necessary for annealing, drying, sterilizing, and other industrial lab functions.
Contact NowTechnical Specification
| Model | CTB14 | CTB20 | CTB30 | ||
|---|---|---|---|---|---|
| Chamber Volume | 14 Lit. | 20 Lit. | 30 Lit. | ||
| Controller | Microprocessor based Auto tune PID controller with timer facility | ||||
| Control Accuracy | ± 0.5°C | ||||
| Display Resolution | 0.1°C | ||||
| Interior Dimension (L x W x H)** | 300 × 300 × 230 | 450 × 300 × 230 | 440 × 380 × 250 | ||
| Power Requirement | 230V, AC, 50Hz,Single Phase | ||||
| Tubular Heater | 1500 W | 2000 W | |||
Optional Accessories
- Facility of Data log report to print record
- RS485 for PC communication with 21 CFR software
