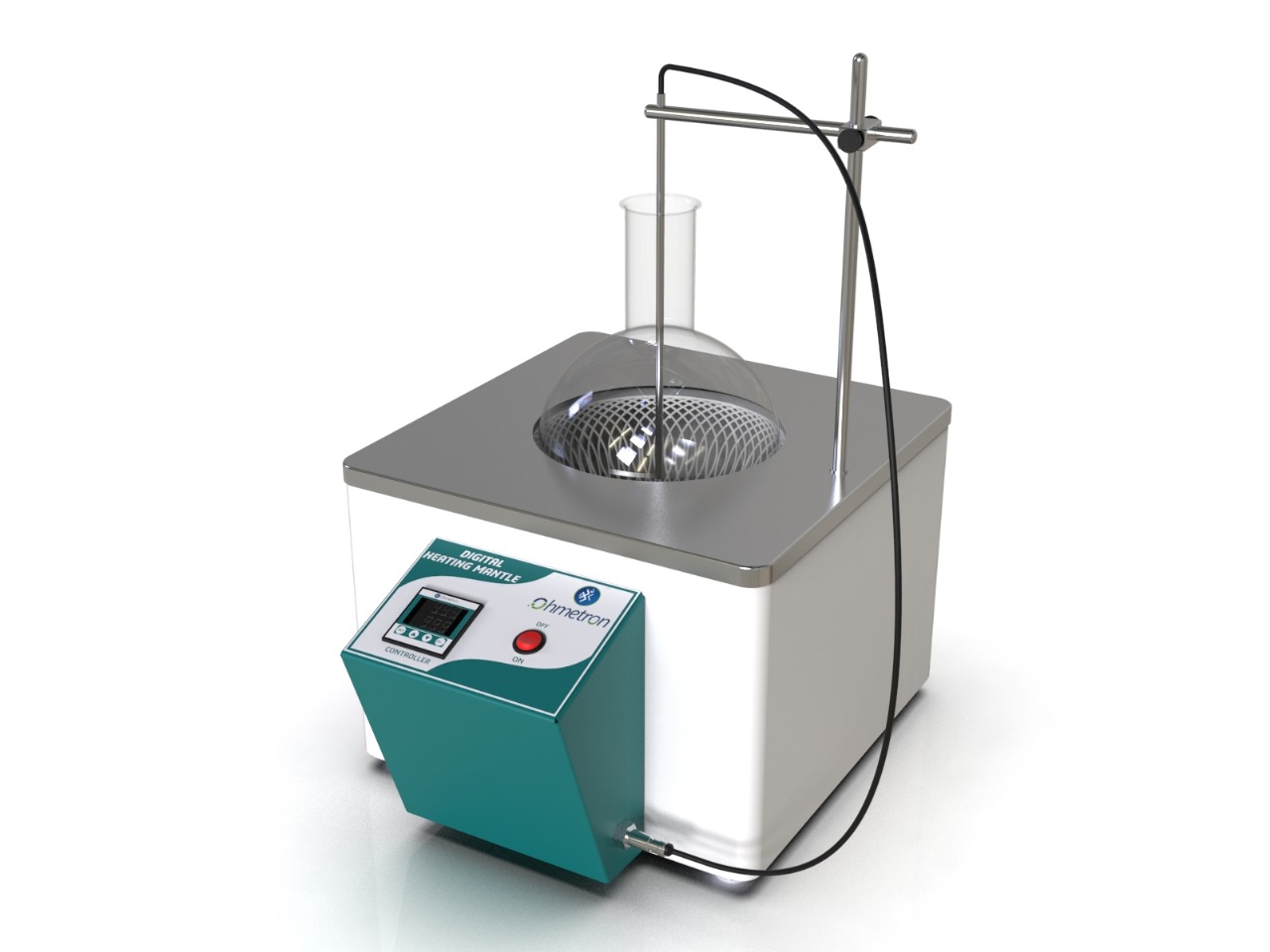

Digital Heating Mantle
Product Features
- M12 Connector External Probe for the better temperature accuracy.
- Temperature range: Ambient +5°C to 225°C
- Mesh type Heating element
- Temperature Stability: ±1°C.
- Display Resolution: 0.1 °C
- Thermally insulated, electrically grounded and powder coated metal body.
- Stainless steel top plate for corrosion resistant handling.
Technical Specification
| Model | DHM010 | DHM020 | DHM030 | DHM050 |
|---|---|---|---|---|
| Flask Capacity (ml) | 1000 | 2000 | 3000 | 5000 |
| Dimension (W × D × H) | 230 × 230 × 200 | 300 × 300 × 270 | 350 × 350 × 270 | |
| Flask Diameter | 135 mm | 166 mm | 186 mm | 255 mm |
| Power Rating | 300 W | 450 W | 500 W | 600 W |
| Current Consumption | 1.3 A | 2 A | 2.2 A | 2.7 A |
| Timer | 0–999 Minutes | |||
