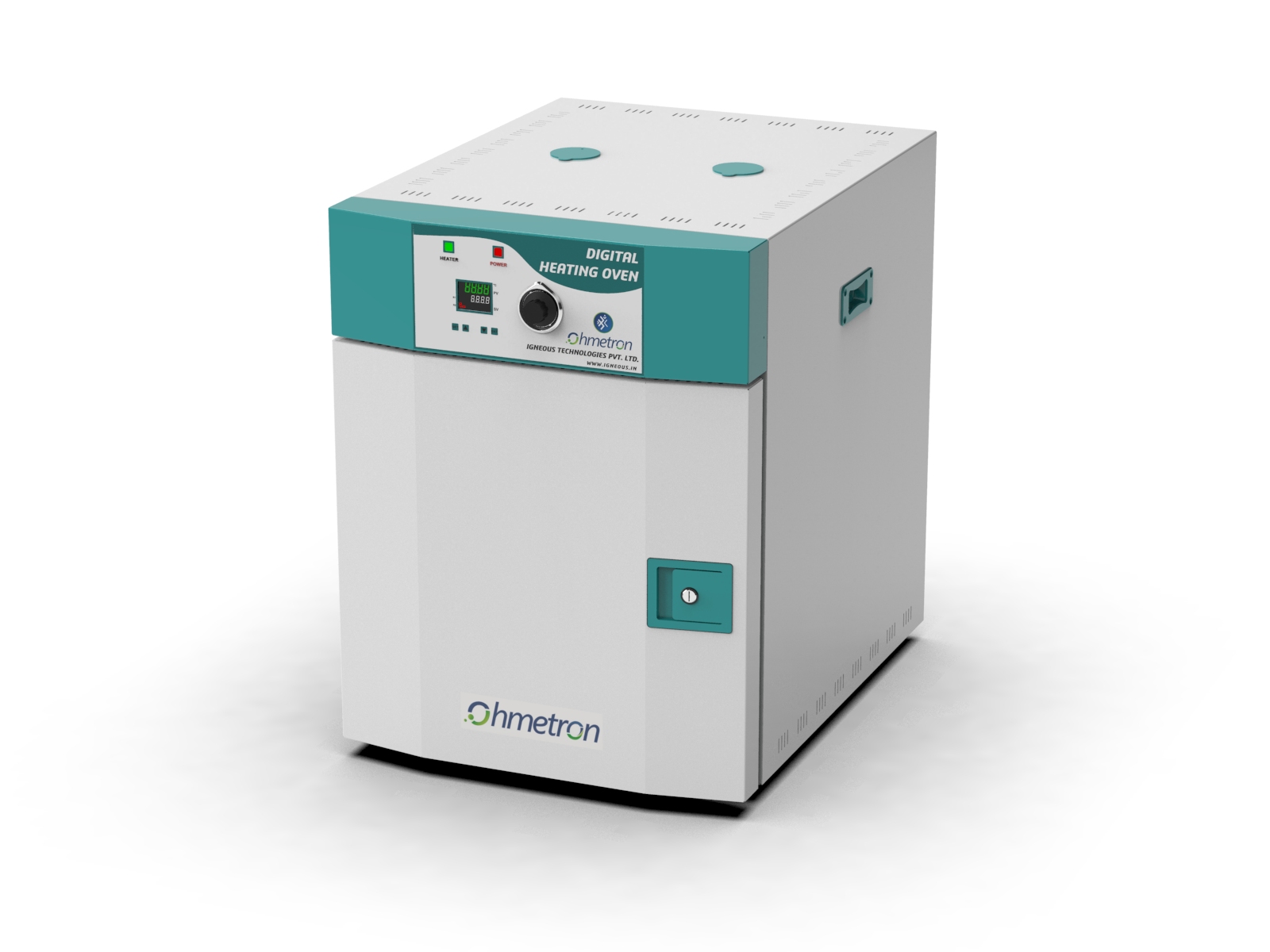

Digital Heating Oven

Product Features

  • Temperature range from 50°C to 250°C
  • Temperature control method : Forced Circulation
  • Double walled construction.
    Inner chamber made of Stainless Steel 304.
  • Exterior body made of M.S sheets powder coated.
  • Gap between two walls filled with glass wool insulation.
  • Insulated door.
  • Heating is by specially designed energy efficient Air heaters fitted.
  • Includes stainless steel 304 shelves with good air
  • permeability and adjustable height.
  • Safety standby thermostat mount on front panel to cut off heater supply in case of overshoot of temperature.
  • Facility of Data log report to print record with HMI TFT 4” display (Optional)
  • RS485 for PC communication with 21 CFR software(Optional)
  • GMP Model (Optional)

Safety

  • Safety standby thermostat mount on front panel to cut off heater supply in case of
    overshoot of temperature

This laboratory equipment provides uniform temperature throughout the chamber necessary for annealing, drying, sterilizing, and other industrial lab functions.

Contact Now

Technical Specification

Model DHO-40 DHO-90 DHO-120 DHO216 DHO-325
CONTROLLER Microprocessor based Auto tune PID controller with timer facility
Chamber volume 40 Lit. 90 Lit. 120 Lit. 216Lit. 216 Lit.
Control Accuracy  ± 2°C at 100°C, 200°C, 250°C
Display Resolution 0.1°C
Exterior dimension (WxDxH)mm 540x730x740 640x830x840 780x980x990 780x980x1010 780x980x1230
Interior dimension (WxDxH)mm 350x350x350 450x450x450 600x600x600 600x600x600 600x600x900
Power requirement 230 VAC, 50Hz,Single phase
Number of Trays 2 3
Spiral Dry Heater 1000 W  1500 W  2000 W 2500 W 3500 W

Optional Accessories

  • Facility of Data log report to print record
  • RS485 for PC communication with 21 CFR software
