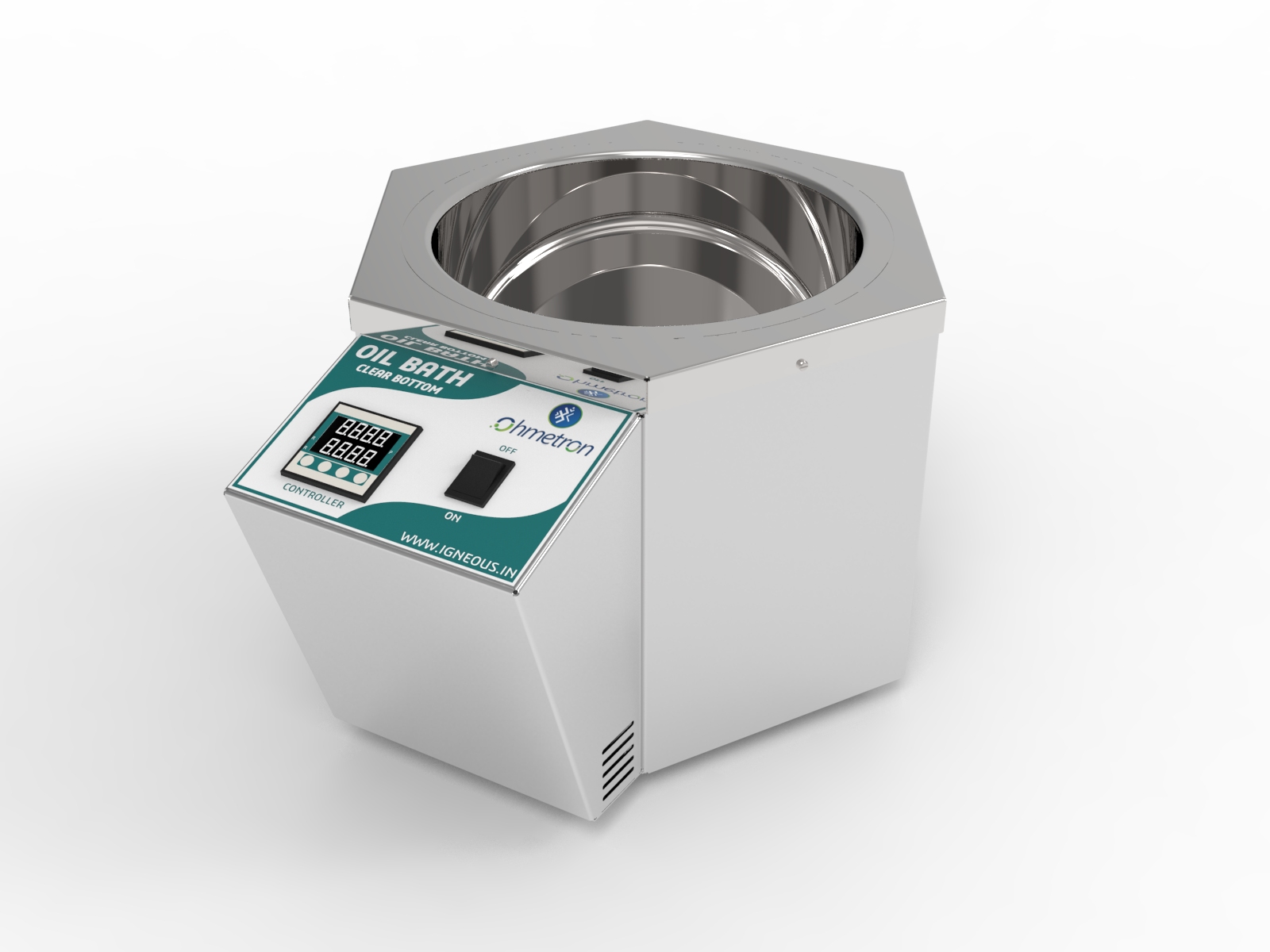

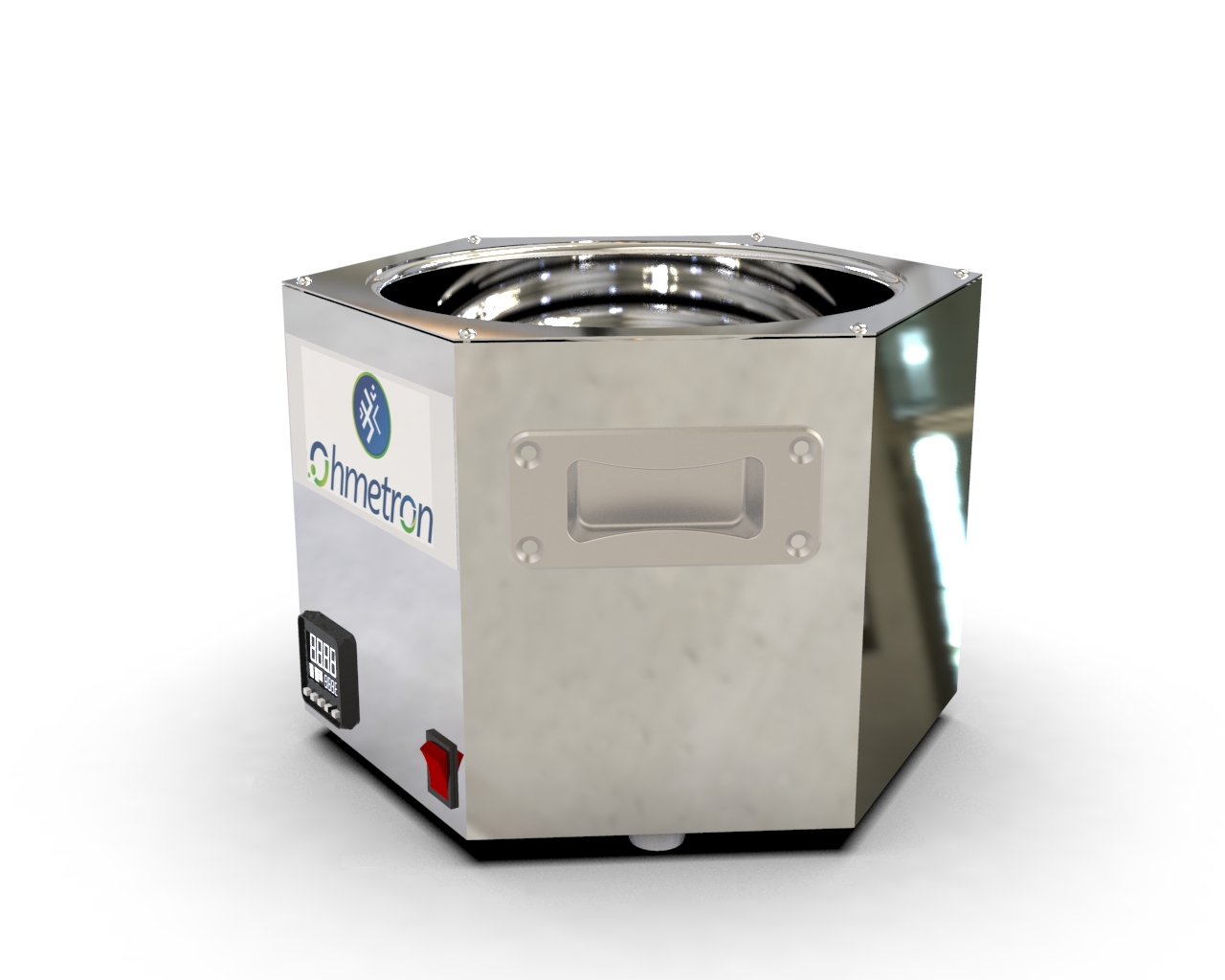

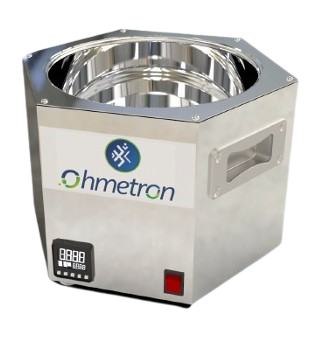

Oil Bath
Product Features
- Temperature range: Ambient +5°C to 250°C
- Body Material : SS-304
- Full SS GMP construction
- Seamless stainless steel tank
- IQ/OQ/PQ: Available.
- Temperature Stability: ±0.5°C @100°C
Applications:
- OHMETRON Round Baths are ideal for all applications requiring, reliable and safe reactions, extraction’s, analysis and tests.
- Stainless Steel immersion heater – peripheral shape to eliminate direct contact with flask – even if flask touches the bottom.
- Double walled, internal and external chamber full stainless steel construction.
- End cycle visual indication with heater cut off.
Safety
- Safety standby thermostat mount on front panel to cut off heater supply in case of
overshoot of temperature
This laboratory equipment provides uniform temperature throughout the chamber necessary for annealing, drying, sterilizing, and other industrial lab functions.
Contact NowTechnical Specification
| Model | OB01IM-GMP | OB03IM-GMP | OB05IM-GMP | OB10IM-GMP | OB20IM-GMP | |
| Round Flask Capacity |
1Ltr. | 3Ltr. | 5Ltr. | 10Ltr. | 20Ltr. | |
| Controller | Microprocessor based Auto tune PID controller with timer facility | |||||
| Display Resolution | 0.1°C | |||||
| Bath size Ø x deep in mm |
Ø165 x 90 | Ø230 x 130 | Ø260 x 150 | Ø350 x 200 | Ø450 x 300 | |
| Heater Capacity | 0.5 Kw | 1.5 Kw | 2 Kw | 2.5 Kw | ||
| Power Consumption |
230V, AC, 50Hz,Single Phase | |||||
