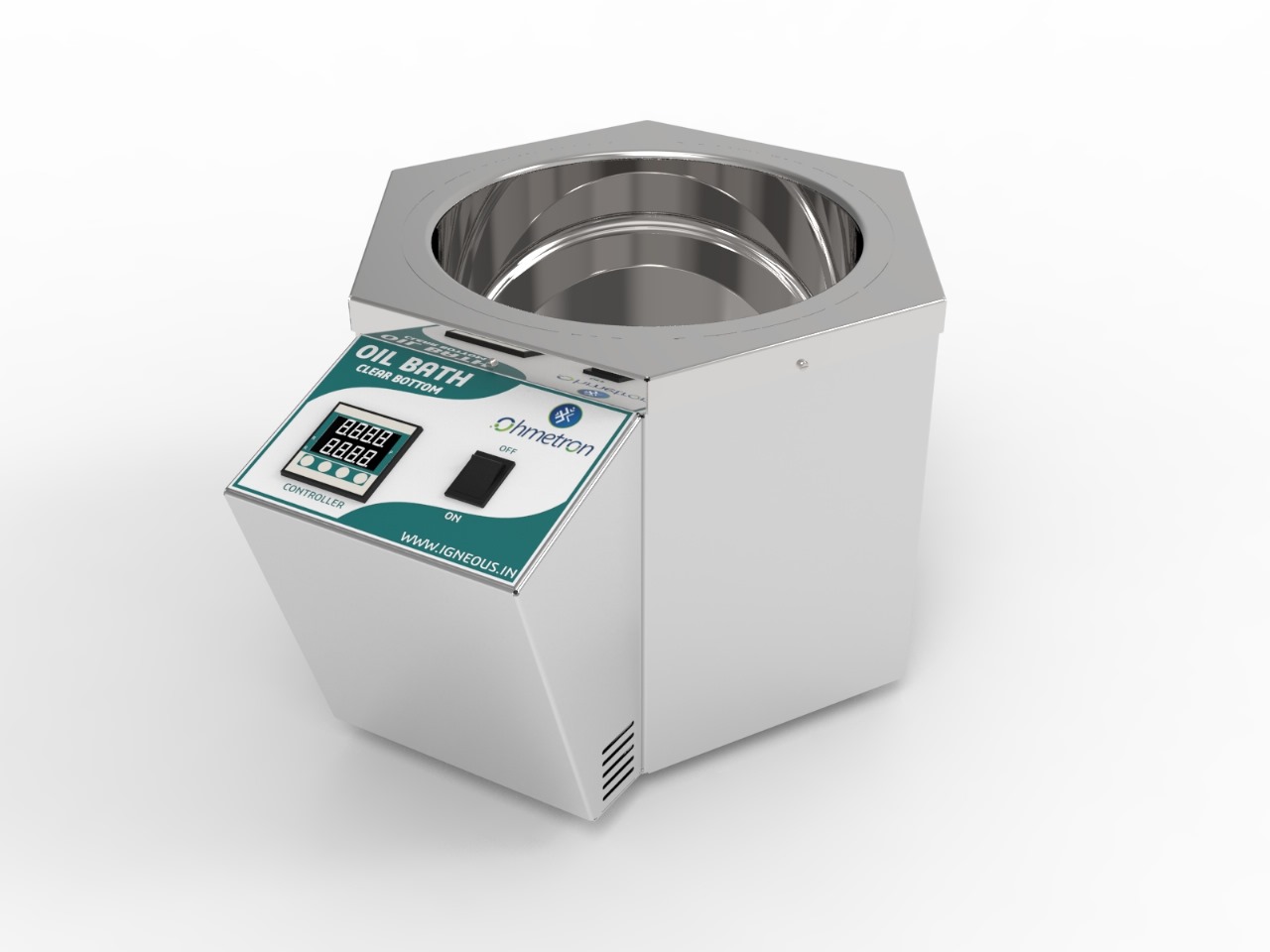

Oil Bath with Clear Bottom

Product Features

  •  Temperature range: Ambient +5°C to 250°C
  • Body Material : SS-304
  • Full SS GMP construction
  • Seamless stainless steel induction tank
  • IQ/OQ/PQ: Available.
  • Temperature Stability: ±0.5°C @100°C

Applications:

  • OHMETRON Round Baths are ideal for all applicationsrequiring, reliable and safe reactions, extraction’s, analysis and tests.
  • A clear bottom. A uniquely designed Bath. Ensures no heater burn out due to lack of water.
  • Double walled, internal and external chamber full stainless steel construction.
  • End cycle visual indication with heater cut off.

Safety

  • Safety standby thermostat mount on front panel to cut off heater supply in case of
    overshoot of temperature

This laboratory equipment provides uniform temperature throughout the chamber necessary for annealing, drying, sterilizing, and other industrial lab functions.

Contact Now

Technical Specification

Model OB01GMP OB03GMP OB05GMP OB10GMP OB20GMP
Controller  Microprocessor based Auto tune PID controller with timer facility
Round Flask
Capacity		 1Ltr  3Ltr. 5Ltr. 10Ltr. 20Ltr.
Display Resolution 0.1°C
 Interior Dimension
(D x H)**		  Ø170 x 90 0242 x 150 0262 x 150 0355 x 200 0455 x 300
Electrical & Power
Requirements		  2 Amp , 0.5 Kw  7 Amp, 1.5 Kw 9 Amp , 2 Kw  13 Amp , 3 Kw
Power Consumption  230V, AC, 50Hz,Single Phase

Optional Accessories

  • Facility of Data log report to print record
  • RS485 for PC communication with 21 CFR software
